Responsive design sample of JSF #PrimeFaces menu component.

CSS JSF PrimeFaces

Yesterday, I found this tweet.

I've never thought about collaboration of JSF and Responsive Design until reading this post. It's interesting for me.

So, I tried to make very simple one by using PrimeFaces menu component.
Here is the behavior.

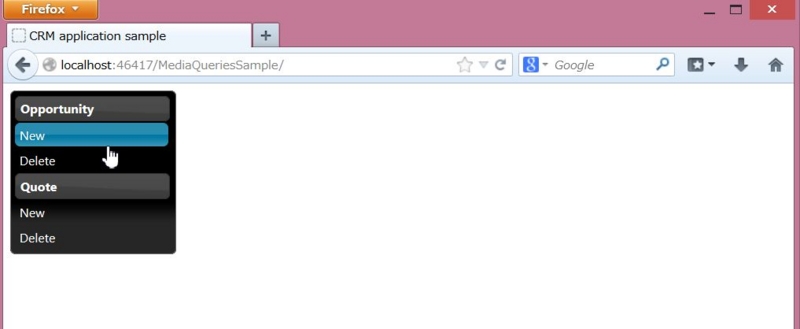

I execute my sample application, firstly the menu component is shown.
f:id:kikutaro777:20131102005051j:plain

Next, I shrink the width of the browser gradually.
At some point, the menu component changes to the menubar component finally.
f:id:kikutaro777:20131102005100j:plain

This behavior is controlled by CSS media queries.
My CSS is here.

@media screen and (min-width : 700px) and (max-width : 1280px){
    .verticalmenu{
        display: none !important;
    }
}

@media screen and (max-width : 700px){
    .horizontalmenu{
        display: none !important;
    }
}

.menuFont{
    font-size: 0.8em;
}

JSF view is simple.

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:p="http://primefaces.org/ui">
    <h:head>
        <title>CRM application sample</title>
    </h:head>
    <h:outputStylesheet library="css" name="responsiveMenu.css" />
    <h:body>
        <h:form styleClass="menuFont">
            <!-- menu component -->
            <p:menu model="#{menuBean.menuModel}" styleClass="horizontalmenu" />

            <!-- menubar component -->
            <p:menubar model="#{menuBean.menuModel}" styleClass="verticalmenu"/>
        </h:form>
    </h:body>
</html>

My backing bean is following.

package jp.co.hoge.mediaqueriessample;

import java.io.Serializable;
import javax.annotation.PostConstruct;
import javax.enterprise.context.RequestScoped;
import javax.inject.Named;
import lombok.Getter;
import lombok.Setter;
import org.primefaces.model.menu.DefaultMenuItem;
import org.primefaces.model.menu.DefaultMenuModel;
import org.primefaces.model.menu.DefaultSubMenu;
import org.primefaces.model.menu.MenuModel;

@Named
@RequestScoped
public class MenuBean implements Serializable{

    //contents of menu
    @Getter @Setter
    private MenuModel menuModel;

    @PostConstruct
    public void init(){
        //creating menu
        menuModel = new DefaultMenuModel();

        DefaultSubMenu opp = new DefaultSubMenu("Opportunity");
        DefaultMenuItem newOpp = new DefaultMenuItem("New");
        DefaultMenuItem delOpp = new DefaultMenuItem("Delete");
        opp.addElement(newOpp);
        opp.addElement(delOpp);

        DefaultSubMenu quote = new DefaultSubMenu("Quote");
        DefaultMenuItem newQuote = new DefaultMenuItem("New");
        DefaultMenuItem delQuote = new DefaultMenuItem("Delete");
        quote.addElement(newQuote);
        quote.addElement(delQuote);

        menuModel.addElement(opp);
        menuModel.addElement(quote);
    }
}

One of good points is the menu data uses the same data between menu component and menubar component.
PrimeFaces MenuModel is common for menu type components.

So I don't need to maintain double codes in this case.

I will try more like this.
